TAMIYA battle unit base



TBU base unit for TK series board





Overview

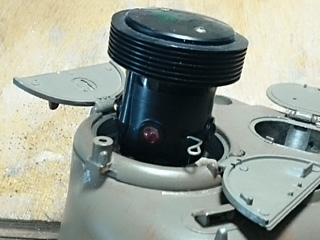

Designed to mount Tamiya Battle unit on RC tank  Easy to install  To work with TK20 series controller



Ordering Information

Part Number

Application



TBU-000 Pre-assembled generic TBU base unit

TBU-001

TBU base kit for Mato M4 (75mm)



TBU-002

TBU base kit for Taigen/Tamiy/HengLong Tiger I







TBU Base:

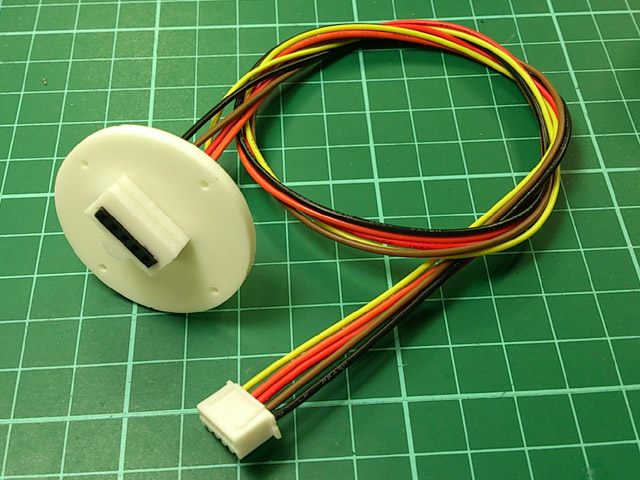

TBU-000 is preassembled TBU base unit, just need to plus 5P cable to the CN2 connector on TK22/20 board and glue the plastic part to the place you want for TBU, such as commander's hatch.





 TBU-001 TBU base unit for Mato M4 (75mm):

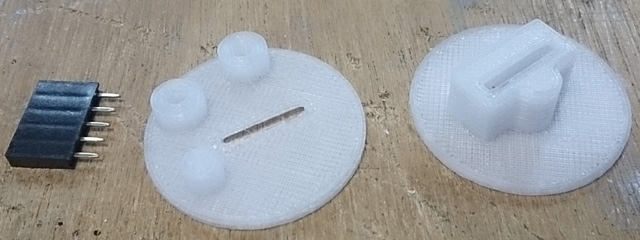

  Part List:

 Part Number

 Part Name

Qty

Remark

A13

TBU base 1

1



A14

TBU base 2

1



MA5

3mm *6 PB Tapping screw



2



TBU Cable

5P connector and cable

1



Assembly Guide:

Please to read "How to work with 3D printed parts" and to clean and trim parts.

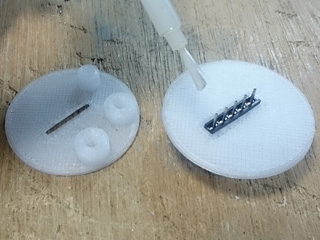

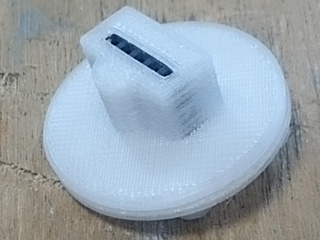

Insert 5P connector, apply ABS glue and glue two parts together

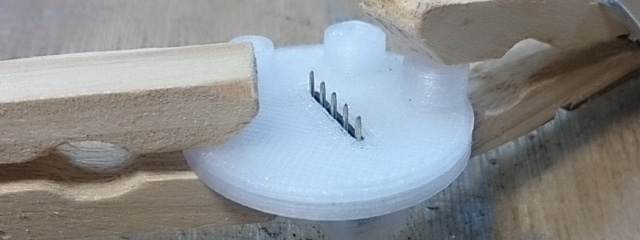

Clip it until ABS glue is cured.

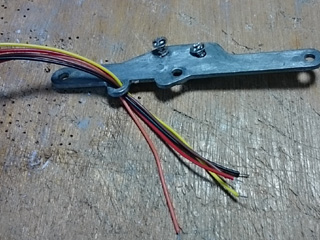

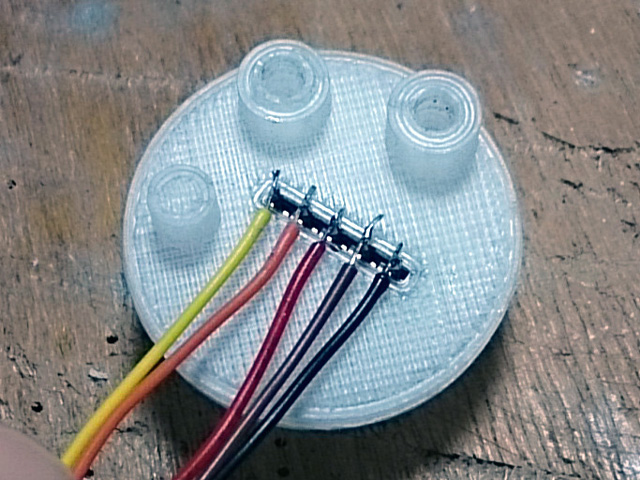

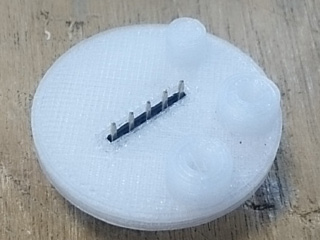

Solder 5P cable

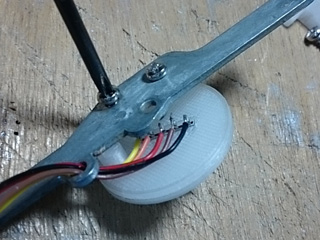

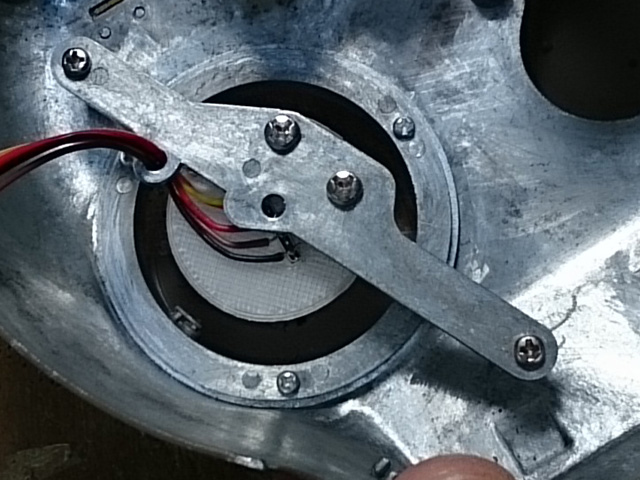

Fit to metal frame with MA5 screw

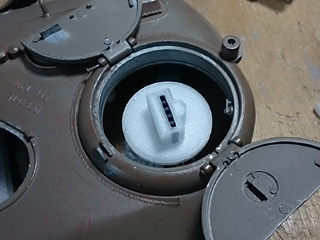

Fit to upper turret with original screws





 TBU-002 TBU base unit for Taigen Tiger I:

  Part List:

 Part Number

 Part Name

Qty

Remark

A1

TBU base 1

1



A2

TBU base 2

1



MA5

3mm *6 PB Tapping screw



2



TBU Cable

5P connector and cable

1



Assembly Guide:

Please to read "How to work with 3D printed parts" and to clean and trim parts.

Insert 5P connector, apply ABS glue and glue two parts together

Clip it until ABS glue is cured.



Solder 5P cable

Fit to metal frame with MA5 screw

Fit to upper turret with original screws
