IR Unit for 1/16 RC Tanks



IR unit for TK series board





Overview

Designed for Tamiya IR compatiable  Designed for 1/16 R/C tanks   Easy to install Work with IR010 IR emitter IR LED is not included.



Ordering Information

Part Number

Application



IRU001

IR unit for Mato M4 (75mm)



IRU002

IR unit for Taigen/Tamiy/HengLong Tiger I





Assembly Guide:

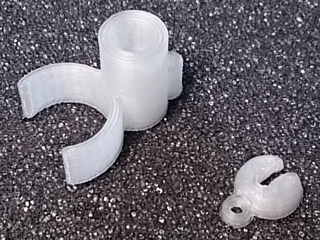

Please to read "How to work with 3D printed parts" and to clean and trim parts.

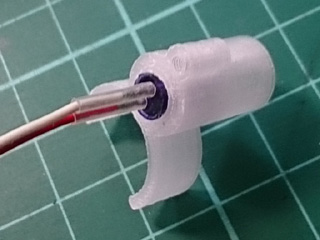

Insert IR LED

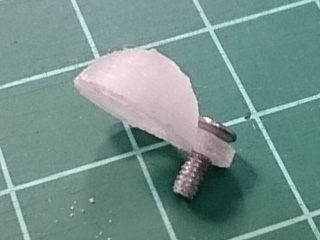

Insert M2*6 screw to back cover

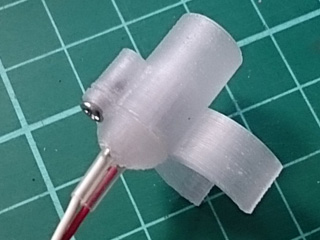

bolt it

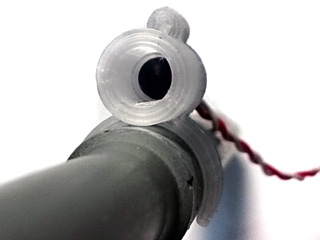

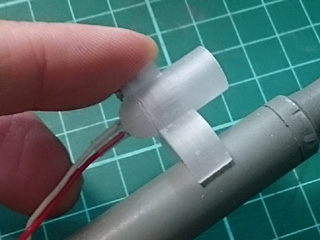

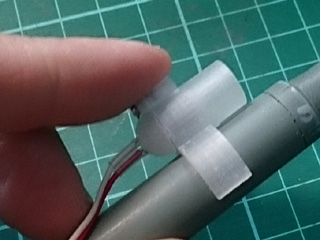

Snap it to gun barrel

Plug cable to J1 on TK board
