TK Series Tank Controller

A Entry-level & Plug-and-Play Controller

for upgrading Heng-Leng RC tank into proportional radio control system

with decent sound.





Overview

 TK-20/18 controller uses 4 channels/Heng Leng RC system to control R/C tank's forward/backward movement, sharp turning, pivoting, turret rotation and gun barrel evaluation at variable speed  Plug-and-Play design for upgrading Heng Leng 1/16 RC Tank  20A track motor driver 22KHz, 8-bit high quality sound with digital sound mixer Maximum of 5 channel of sound track, main gun, machine gun, turret rotate, gun barrel elevation and engine sound can be generated at the same time 5W sound output power Support air-soft gun with sound synchronization Support TAMIYA/Heng Leng IR battle format  Safety shutoff prevents unwanted movement while signal lost Auto R/C Control signal detection, support  , and 2.4G system



Ordering Information

Part Number

Application

Release Schedule

TK-18-T

-Support TAMIYA IR battle,

-Support Heng Leng RC system,

-Direct replacement of HL TK-18.

TK-18-H

-Support Heng Leng IR battle,

-Support Heng Leng RC system,

-Direct replacement of HL TK-18.

TK-20-T

-2-Cell Li-Polymer or 6 Cell NI-CD operation for best performance,

-Support TAMIYA RC tank IR battle,

-For , and 2.4G RC system

-4-CH control mode.

-Support TAMIYA Recoil unit,

Mid of  Aug

TK-20-H

-2-Cell Li-Polymer or 6 Cell NI-CD operation for best performance,

-Support Heng-Long RC tank IR battle,

-For , and 2.4G RC system

-4-CHcontrol mode,

-Support TAMIYA Recoil unit.

Mid of  Aug





Sound variations

Part Number

Application

 Released Schedule

TK-XX-X-TIGER

German Tiger I and KingTiger

Mid of  Aug

TK-XX-X-ELEFANT

 German Elefant

Mid of  Aug

TK-XX-X-T34

Russian T-34

 TBD

TK-XX-X-KV

Russian KV1

 TBD

TK-XX-X-T-55

Russian T-55

 TBD
TK-XX-X-M4 U.S. M4 Sherman TBD





4-CH Control Mode and operation
  Start and Stop Engine
  Cannon elevation
  Booming Cannon
  Fire MG
  Head light control on and off
  Tank move forward and backward
  Right and  Left turn
  Turret rotation



Specification

Part Number

Parameter



Unit

TK-20/18







Maximum current of track ESC

20

A

Maximum current of turret and cannon elevation ESC

7

A

Maximum supply voltage

7.4

V

Minimum supply voltage

4.8

V



TK-20/18 connector layout

TK-20 series connector definition

Connector

Description

CN1

Battery Power



CN2

Infrared Port



CN3

Gun Flash



CN4

Sound Volume



CN5

Speaker



CN6

Motor Left



CN7

Motor Right



CH1

Steering control signal

CH1 on Receiver

AILE on Receive

CH2

Throttle control signal

CH2 on Receiver

CH3 (Right hand)

ELEV on Receiver

CH3

Multi function control signal 1

CH3 on Receiver

CH2(Right hand)

THRO on Receiver

CH4

Multi function control signal 2

CH4 on Receiver

RUOD on Receiver

CN9

Upper Hull Functions( Turn, Lift, Shoot, Light)



CN10

Smoke Unit



CN11

Smoke Unit Switch



CN12

TAMIYA recoil unit interface. color of wire are shown below.



TK-18 series connector definition

Connector

Description

CN1

Battery Power

CN2

Infrared Port

CN3

Gun Flash

CN4

Sound Volume

CN5

Speaker

CN6

Motor Left

CN7

Motor Right

CH1

Receiver board

CH2

Not used

CH3

Not used

CH4

Not used

CN9

Upper Hull Functions( Turn, Lift, Shoot, Light)

CN10

Smoke Unit

CN11

Smoke Unit Switch

CN12

Not used



Top View

Bottom View



Assembly Guide:

Disconnect RX-18 and plug cables to the same connector on TK-20/18,



Disconnect Air-soft unit from elevation motor and wire it as the following. this allows you to elevate and depress gun directly.

1. Disconnect red wire between safety switch and gun barrel elevation unit.

2. Change original 3P connector to 4P type, add additional wire from safety switch to 4P connector,

3. Add 4P connector HUL-8P PCB connector

4. Done, Airsoft unit is now controlled by red-black pair, gun barrel unit is controlled by red-white pair. and you can connect 8P connector to CN9 on TK-18/20 with original cable.



Using TAMIYA LED battle unit.

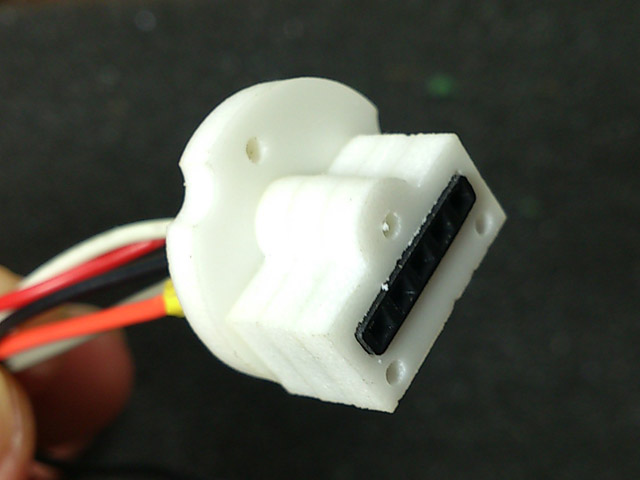

1. Make a base by TAMIYA white plastic board and 5-pin, 2.54mm-pitch connector

2. Attach the Base to tank commander position,

3. Wiring.

Red wire is +5V, Orange wire is LED+

4. Collect all wire relate to IR battle units and IR LED to a 8-P connector. Black-green twisted wire on right side is for IR Emitter, black is LED-, green is LED+

5. connect to IR port on TK-20

Hook up TAMIYA recoil unit to CN12(Optional). CN12 in pin-to-pin compatible with TAMIYA recoil unit, just make sure color of wire are matched.





FAQ

 Build in Mixer: Convert Rudder and Throttle control signal to Left and Right track speed signal.

Safety shutoff: Occurred if controlling signal is lost, controller cuts motor off and waits signal come back

Auto cutoff: The motor cutoff will occurred when battery input drops below minimum supply voltage of controller. If cutoff is happed frequently, increasing  battery cell to rise voltage or use battery which has larger output current.

Remote control system: There are two remote control system in market, and , TK series can support both.



PRECAUTION

Read carefully and fully understand the instructions before commencing assembly.
